Buttweld Reducing Tee, Manufacturer Of ASME B16.9 Butt weld Reducing Tee, Reducing Tee Pipe Fitting, Reducing Tee Pipe Fitting, Buttweld Reducing Tee Exporters in India

We are experts in manufacturing and exporting a precision engineered range of Reducing Tee Butt weld Fittings in several forms and types. Stringently quality tested on the parameters of tolerance and corrosion resistance, these fittings are offered to our clients with mill test certificate as per EN 10204 / 3.1B for quality evaluation purposes. To enhance their serviceability, these fittings are hot dip galvanized, epoxy coated and electro polished at the clients’ order.

We have specialization to manufacture customized ASME B16.9 Butt weld Reducing Tee per customers’ specifications, we welcome small quantity order. We believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ASME B16.9 Butt weld Reducing Tee are always our main priority. We are known as specialist in ASME B16.9 Butt weld Reducing Tee,70% of our customers are associated with us for their regular requirements of ASME B16.9 Butt weld Reducing Tee, Chinese suppliers also procures ASME B16.9 Butt weld Reducing Tee from us bcz.

Triton Alloys Inc is Manufacturer, Stockists & Supplier of premium quality range of ASME B16.9 Butt weld Reducing Tee, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ASME B16.9 Butt weld Reducing Tee & other pipe fittings. our ASME B16.9 Butt weld Reducing Tee & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ASME B16.9 Butt weld Reducing Tee are corrosion resistance, sturdy and durable. we also supply ASME B16.9 Butt weld Reducing Tee & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ASME B16.9 Butt weld Reducing Tee. When you place an order with Triton Alloys Inc , you will receive the products that will stand up in service from people that will stand behind their product.


Specification :


Type Butt weld (BW)
Standards ASME / ANSI – B 16.9
ASTM A403 – ASME SA403 – ‘Standard Specification for Wrought Austenitic   Stainless Steel Piping Fittings’
API 590-605
ASME B16.9 – ‘Factory-Made Wrought Buttwelding Fittings’
ASME B16.25 – ‘Buttwelding Ends’
ASME B16.28 – ‘Wrought Steel Buttwelding Short Radius Elbows and   Returns’
MSS SP-43 – ‘Wrought and Fabricated Butt-Welding Fittings for Low   Pressure, Corrosion Resistant Applications’
Dimension ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS   B2312, JIS B2313
Thickness Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80,   S100, S120, S140, S160, XXS and etc.
Schedule Sch 5 TO Sch XXS.
Size 1/2” TO 36”, (Seamless up to 24”), (Welded 8” TO 36”)
Stainless Steel ASTM A 403 WP - TP 304, H, L, 316, 309, 310, 317L, 321, 347, 904L
Duplex Steel 2205, 31803, 32750, 32760, 2101, 2304
Carbon Steel ASTM A 234 WPB, A-420 WPL6.
Alloy Steel ASTM A 234 WP - P5, P9, P11, P12, P21, P22 & P91.
Nickel Alloy Cupro Nickel, Hastelloy, Nickel, Monel , Inconel , Alloy 20 etc.
Test Certificate MTC, IBR TC, Lab.TC from Govt. App. Lab. with Third Party Inspection.
Specialize * Long Bend with Radius R=3D, 5D, 10D etc.

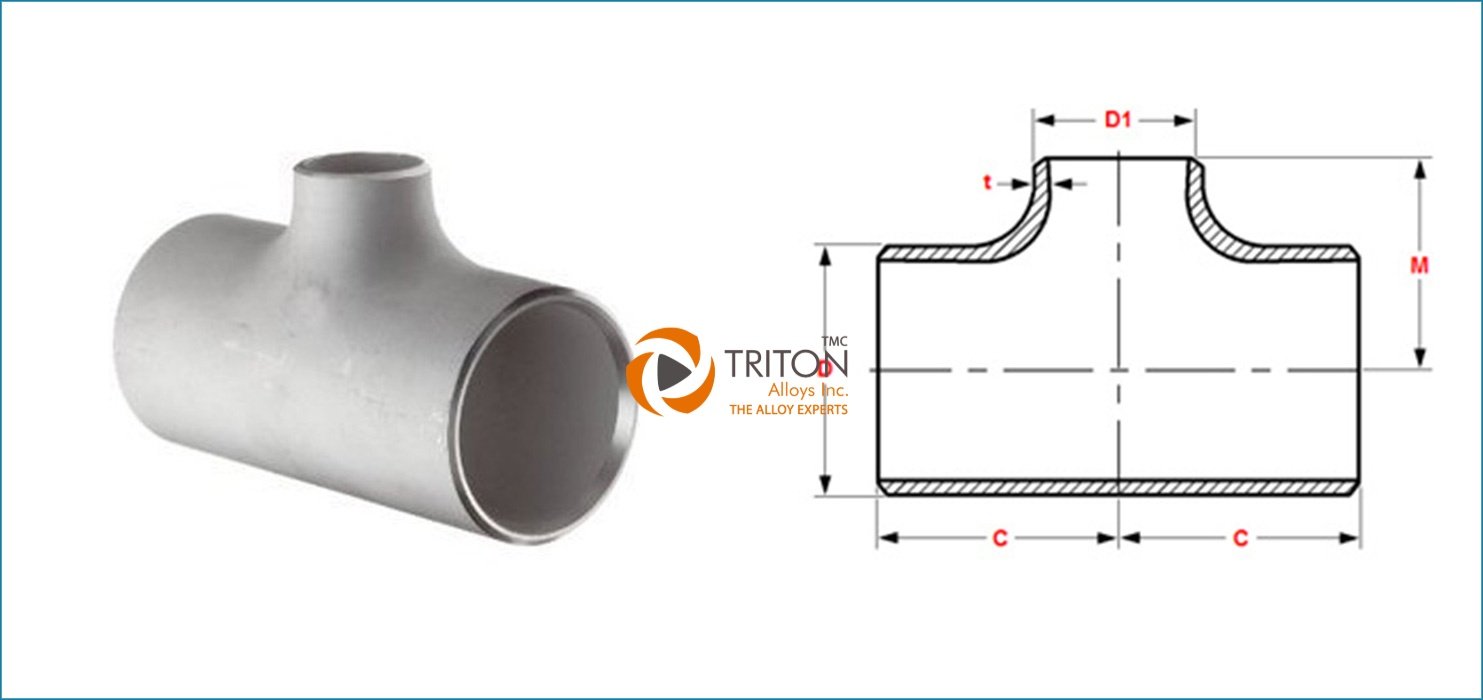

ASME B16.9 Butt weld Reducing Tee Dimensions:

Nominal Pipe Size Outside diameter
at bevel
Center-to-End
Run Outlet Run Outlet Run (C) Outlet (M)
1/2" 1/4"
3/8"
21.3 13.7
17.3
25 25
3/4" 3/8"
1/2"
26.7 17.3
21.3
29 29
1" 1/2"
3/4"
33.4 21.3
26.7
38 38
1 1/4" 1/2"
3/4"
1"
42.2 21.3
26.7
33.4
48 48
1 1/2" 1/2"
3/4"
1"
1 1/4"
48.3 21.3
26.7
33.4
42.2
57 57
2" 3/4"
1"
1 1/4"
1 1/2"
60.3 26.7
33.4
42.2
48.3
64 44
51
57
60
2 1/2" 1"
1 1/4"
1 1/2"
2"
73.0 33.4
42.2
48.3
60.3
76 57
64
67
70
3" 1 1/4"
1 1/2"
2"
2 1/2"
88.9 42.2
48.3
60.3
73.0
86 70
73
76
83
3 1/2" 1 1/2"
2"
2 1/2"
3"
101.6 48.3
60.3
73.0
88.9
95 79
83
89
92
4" 1 1/2"
2"
2 1/2"
3"
3 1/2"
114.3 48.3
60.3
73.0
88.9
101.6
105 86
89
95
98
102
5" 2"
2 1/2"
3"
3 1/2"
4"
141.3 60.3
73.0
88.9
101.6
114.3
124 105
108
111
114
117
6" 2 1/2"
3"
3 1/2"
4"
168.3 73.0
88.9
101.6
114.3
141.3
143 121
124
127
130
137
8" 3 1/2"
4"
5"
6"
219.1 101.6
114.3
141.3
168.3
178 152
156
162
168
10" 4"
5"
6"
8"
273.0 114.3
141.3
168.3
219.1
216 184
191
194
203
12" 5"
6"
8"
10"
323.8 141.3
168.3
219.1
273.0
254 216
219
229
241
14" 6"
8"
10"
12"
355.6 168.3
219.1
273.0
323.8
279 238
248
257
270
16" 6"
8"
10"
12"
14"
406.4 168.3
219.1
273.0
323.8
355.6
305 264
273
283
295
305
18" 8"
10"
12"
14"
16"
457.0 219.1
273.0
323.8
355.6
406.4
343 298
308
321
330
330
20" 8"
10"
12"
14"
16"
18"
508.0 219.1
273.0
323.8
355.6
406.4
457.0
381 324
333
346
356
356
368
22" 10"
12"
14"
16"
18"
20"
559.0 273.0
323.8
355.6
406.4
457.0
508.0
419 359
371
381
381
394
406
24" 10"
12"
14"
16"
18"
20"
22"
610.0 273.0
323.8
355.6
406.4
457.0
508.0
559.0
432 384
397
406
406
419
432
432


ASME B16.9 BUTTWELD 90 DEGREE ELBOW AVAILABLE TYPES


SS 90 Deg. Elbows Steel Pipe Elbow
Copper Nickel 90 Deg Elbow 90° Short Radius Elbow
ASME B16.9 90 deg Long Radius Elbow Schedule 10 90 Degree Elbow
Stainless Steel 90 Degree Pipe Elbow Suppliers Buttweld Elbow 90 Degree
ANSI B16.9 90 Degree Buttweld Elbow Dealer Titanium 90 Degree Elbow
Welded 90 Deg Elbow Stockholder Seamless 90° Pipe Elbow Distributors
Carbon Steel 90deg.Elbow High Quality 90° Elbow Manufacturer
ASTM A403 Stainless Steel 90 Deg Elbows Duplex Steel 90° Pipe Elbow
Inconel Butt weld 90 Deg Pipe Elbow Butt Weld Long Radius 90 Degree Elbows
High Nickel Alloy 90° Elbow Hastelloy 90° Pipe Elbow Stockist
ASME B16.28 Buttweld 90 Degree Elbow Exporter Super Duplex Steel 90 Deg Elbow

Types of ASME B16.9 Buttweld Fittings


Buttweld Fittings

ASME B16.9SS 90° Long Radius Elbow

Buttweld Fittings

ASME B16.9 SS 90° Short Radius

Buttweld Fittings

ASME B16.9 SS 45° Long Radius Elbow

Buttweld Fittings

ASME B16.9 SS 45° Short Radius Elbow

Buttweld Fittings

ASME B16.9 SS 180° Long Radius Elbow

Buttweld Fittings

ASME B16.9 SS 180° Short Radius Elbow

Buttweld Fittings

ASME B16.9 SS 1D Elbow

Buttweld Fittings

ASME B16.9 SS 1.5D Elbow

Buttweld Fittings

ASME B16.9 SS 3D Elbow

Buttweld Fittings

ASME B16.9 SS Seamless Buttwelding 180° Returns

Buttweld Fittings

ASME B16.9 SS Pipe Nipples

Buttweld Fittings

ASME B16.9 SS Lateral


Buttweld 90 Deg. Elbow Application


ASME B16.9 90 Degree Elbow are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld 90 Degree Elbow through a worldwide network of stock-keeping branches. These 90Deg. Buttweld Elbow is use in various industries like :

  • 90° Elbow uses in Paper & Pulp Companies
  • Stainless Steel 90° Buttweld Elbow uses in Oil and Gas Industry
  • 90° Buttweld Pipe Elbow uses in Chemical Refinery
  • Alloy Steel 90° Elbow uses in Pipeline
  • Buttweld 90 Degree Pipe Elbow uses in High Temperature Application
  • 90 Degree Buttweld Elbow uses in Water Pipe Line
  • ANSI B16.9 Buttweld 90° Pipe Elbow can be used in Nuclear power plants
  • 90° Degree Elbow usefule for High Pressure Applications
  • Buttweld 90° Long Radius Elbow uses in Fabrication and welding Job
  • 90° Buttweld Elbow uses in Food Processing and Dairy Industries
  • Buttweld 90° Short Radius Elbow uses in boiler & heatexchangers
