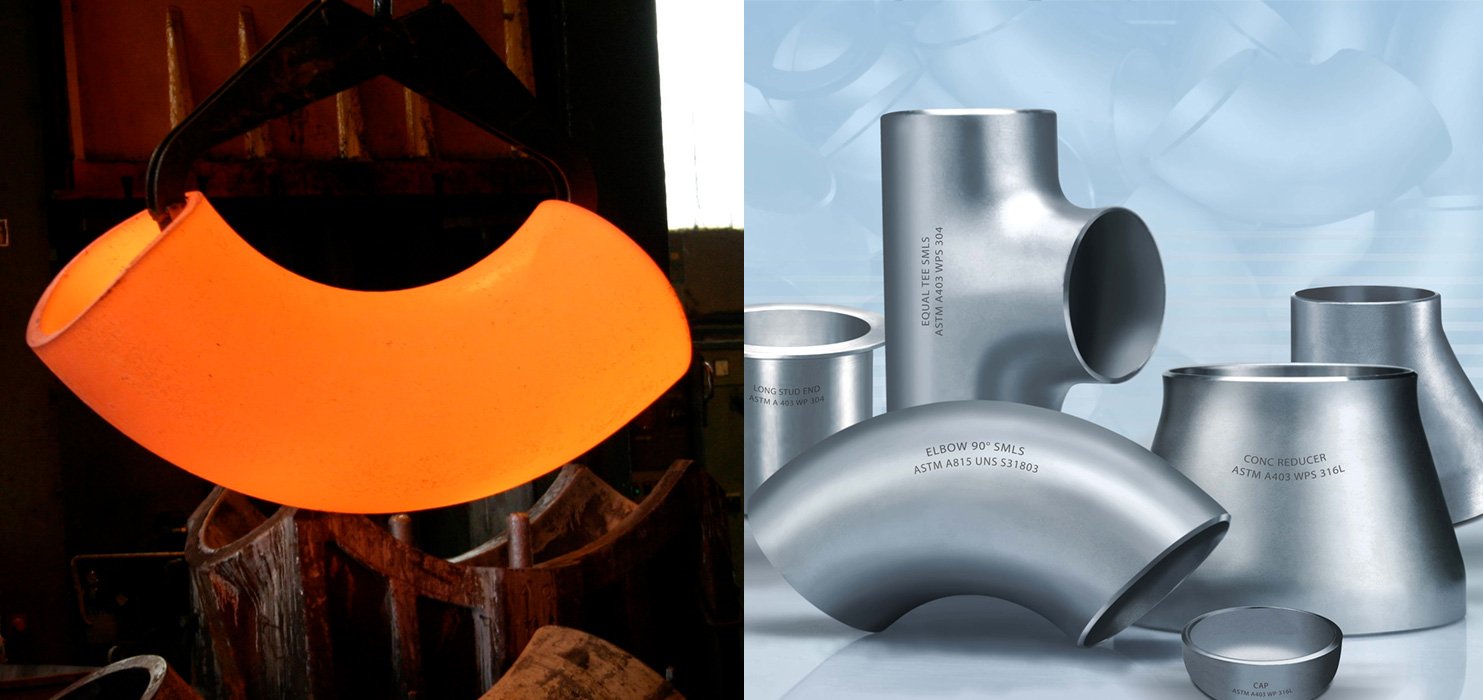

Triton Aloys Inc are manufacturers, stockiest & suppliers of Incoloy Alloy 20 Butt weld Pipe Fittings. Incoloy Alloy 20 Butt weld Pipe fittings have special quality finishing and duress for long life, high pressure and zero defects.

The product differentiation is based on the premier finish of Incoloy Alloy 20 Butt weld Pipe Fittings with minimum burr at the edge . The v shape formation for perfect welding and fabrication of the fittings in mega projects in oil and gas industry for long life of the product. Orders at Triton Aloys Inc are guaranteed fast delivery of the Incoloy Alloy 20 Butt weld Pipe Fittings in the country. The main reason being we have an excellent warehousing and storage facilities for both finished and semi finished goods. They are made ready as per the urgent requirements of the customers. The Incoloy Alloy 20 Butt weld Pipe Fittings are manufactured to sustain very high pressure and product warranty.


Specification :


Specifications ASTM B366, ASME SB366
 size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
 Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
 Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
 Types 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
DIN Standard Available DN15-DN1200
 Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
 Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian



Incoloy Alloy 20 Buttweld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN OR
Incoloy 825 2.4858 N08825 NCF 825 NA 16 ЭП703 NFE30C20DUM NiCr21Mo XH38BT

Incoloy Alloy 20 Buttweld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr Al Ti
825 0.05 max 1.00 max 0.05 max 0.03 max 1.50 – 3.00 22.00 min 38.00 – 46.00 19.50 – 23.50 0.02 max 0.06 – 1.20

Incoloy Alloy 20 Buttweld Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
825 8.14 g/cm3 1400 °C (2550 °F) Psi – 80,000 , MPa – 550 Psi – 32,000 , MPa – 220 30 %


Types of Buttweld Fittings Available


Buttweld Fittings

Long Radius Elbow

Buttweld Fittings

Short Radius

Buttweld Fittings

Long Radius Elbow

Buttweld Fittings

Short Radius Elbow

Buttweld Fittings

Long Radius Elbow

Buttweld Fittings

ASME B16.9 SS 180° Short Radius Elbow

Buttweld Fittings

1D Elbow

Buttweld Fittings

1.5D Elbow

Buttweld Fittings

3D Elbow

Buttweld Fittings

Seamless Buttwelding 180° Returns

Buttweld Fittings

Pipe Nipples

Buttweld Fittings

Lateral



Buttweld Fittings Applications Industries


ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Fittings Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :

  • Buttweld Fittings uses in Paper & Pulp Companies
  • Stainless Steel Buttweld Fittings uses in Oil and Gas Industry
  • Buttweld Fittings Pipe Forged uses in Chemical Refinery
  • Alloy Steel Threaded Elbowuses in Pipeline
  • Buttweld Buttweld Fittings Pipe Forged uses in High Temperature Application
  • Buttweld Fittings uses in Water Pipe Line
  • ANSI B16.9 Buttweld Fittings Pipe Forged can be used in Nuclear power plants
  • Buttweld Fittings usefule for High Pressure Applications
  • Buttweld Fittings Long Radius Forged uses in Fabrication and welding Job
  • Buttweld Fittings uses in Food Processing and Dairy Industries
  • Buttweld Fittings Short Radius Forged uses in boiler & heatexchangers

Marking & Packing


Our Nickel Alloy 2.4066 round bars are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Nickel Alloy UNS N02200 bar are marked with Grade, Lot No, Size and our trade mark. We can also make custom marking on our products on Special request from Purchaser.


Quality Assurance


Triton Alloys Inc all Nickel Alloy 200 round bars, Nickel Alloy 200 bright bars and Nickel 200 hex bars are subject to strict inspection at each stage starting from material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, DIN, EN, and JIS codes and standards. We can also appoint official certified Inspection Agencies upon request of our clients so that they can witness the material reports, dimensions and quality conformity of products.
