Inconel 601 Pipe Fittings Supplier Manufacturer UNS N06601 ASTM B366 ANSI B16.9 and 16.28 | Buttweld Fittings |Inconel 601 Elbow, Tee, Reducer, Cross, Nipple, Cap, Bend, Collar, Insert

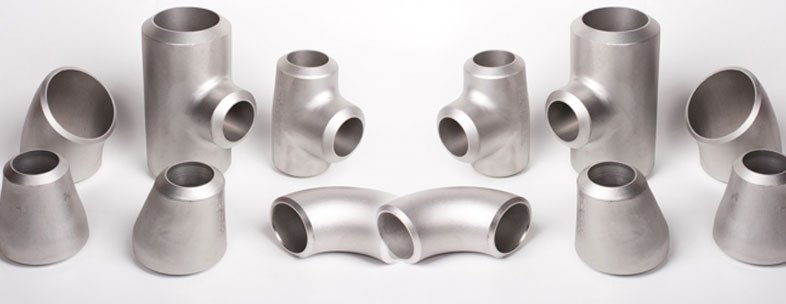

Inconel 601 Pipe Fittings ASTM B366 come in various forms such as 90 Degree Elbow, Concentric Reducer, Long Stubend, 45 Degree Elbow, Eccentric Reducer, Short Stubend, Short Radius Elbow, Equal Tee, Pipe Nipple, Long Radius Elbow, Reducing Tee, 180 Degree Elbow, 3D/5D/7D Elbows, Pipe End Cap, Long Bend, etc. We maintain all these forms of Pipe fittings in ready to dispatch stock for immediate deliveries to our customers. We manufacture these pipe fittings in all forms and sizes ranging from 15 mm NB to 1200 mm NB in Schedule 5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS.

Inconel 601 Buttweld Fittings supplied by us are made of high quality material and comply with international standards. Our Buttweld Fittings are especially manufactured to suit industry needs and environments and extreme care is taken in handling and supplying these products. Each Product is individually tested by our expert team to assure best quality and finished product to our customers. Buttweld Fittings are packed in paper, plastic, bubble wrap and supplied in wooden boxes and containers as requested by the customer.


Specification :


Specifications ASTM B366, ASME SB366
 size Seamless Butt Weld Fittings: 1/2" - 10"
Welded Butt Weld Fittings: 1/2" - 48"
 Dimensions ASME/ANSI B16.9, ASME B16.28, MSS-SP-43, BS4504, BS4504, BS1560, BS10
 Thickness SCH10, SCH20, SCH30, STD SCH40, SCH60, XS, SCH 80, SCH 100, SCH 120, SCH 140, SCH 160, XXS available with NACE MR 01-75
 Types 90º Elbows, 45º Elbows, Tees, Crosses, Reducers, Pipe Cap, Stub End, Pipe Bend
DIN Standard Available DN15-DN1200
 Elbow Angle : 22.5 deg, 30deg, 45 deg, 90 deg, 180 deg, 1.0D, 1.5D, 2.0D, 2.5D, 3D, 4D, 5D, 6D, 7D-40D.
Standard: ASME B16.9, ASME B16.28, ASME B16.25, MSS SP-75 DIN2605 JISB2311 JISB2312 JISB2313, BS, GB, ISO
Manufacturing process Push, Press, Forge, Cast, etc.
 Test Certificates EN 10204/3.1B
Raw Materials Certificate
100% Radiography Test Report
Third Party Inspection Report, etc
Origin & Mills Japanese, Indian, USA, Korean, European, Ukraine, Russian



Inconel 601 Buttweld Fittings Equivalent Grades

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
Inconel 601
2.4851 N06601 NCF 601 NA 49 XH60BT NC23FeA NiCr23Fe

Inconel 601 Buttweld Fittings Chemical Composition

Grade C Mn Si S Cu Fe Ni Cr
Inconel 601
0.15 max 1.00 max 0.50 max 0.015max 1.0 max balance 58.0-63.0 21.0-25.0

Inconel 601 Buttweld Fittings Mechanical Properties

Element Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
Inconel 601
8.1 g/cm3 1411 °C (2571 °F) Psi – 80,000 , MPa – 550 Psi – 30,000 , MPa – 205 30 %


Types of Buttweld Fittings Available


Buttweld Fittings

Long Radius Elbow

Buttweld Fittings

Short Radius

Buttweld Fittings

Long Radius Elbow

Buttweld Fittings

Short Radius Elbow

Buttweld Fittings

Long Radius Elbow

Buttweld Fittings

ASME B16.9 SS 180° Short Radius Elbow

Buttweld Fittings

1D Elbow

Buttweld Fittings

1.5D Elbow

Buttweld Fittings

3D Elbow

Buttweld Fittings

Seamless Buttwelding 180° Returns

Buttweld Fittings

Pipe Nipples

Buttweld Fittings

Lateral



Buttweld Fittings Applications Industries


ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Fittings Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :

  • Buttweld Fittings uses in Paper & Pulp Companies
  • Stainless Steel Buttweld Fittings uses in Oil and Gas Industry
  • Buttweld Fittings Pipe Forged uses in Chemical Refinery
  • Alloy Steel Threaded Elbowuses in Pipeline
  • Buttweld Buttweld Fittings Pipe Forged uses in High Temperature Application
  • Buttweld Fittings uses in Water Pipe Line
  • ANSI B16.9 Buttweld Fittings Pipe Forged can be used in Nuclear power plants
  • Buttweld Fittings usefule for High Pressure Applications
  • Buttweld Fittings Long Radius Forged uses in Fabrication and welding Job
  • Buttweld Fittings uses in Food Processing and Dairy Industries
  • Buttweld Fittings Short Radius Forged uses in boiler & heatexchangers

Marking & Packing


Our Nickel Alloy 2.4066 round bars are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All Nickel Alloy UNS N02200 bar are marked with Grade, Lot No, Size and our trade mark. We can also make custom marking on our products on Special request from Purchaser.


Quality Assurance


Triton Alloys Inc all Nickel Alloy 200 round bars, Nickel Alloy 200 bright bars and Nickel 200 hex bars are subject to strict inspection at each stage starting from material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, DIN, EN, and JIS codes and standards. We can also appoint official certified Inspection Agencies upon request of our clients so that they can witness the material reports, dimensions and quality conformity of products.
