Triton Alloys

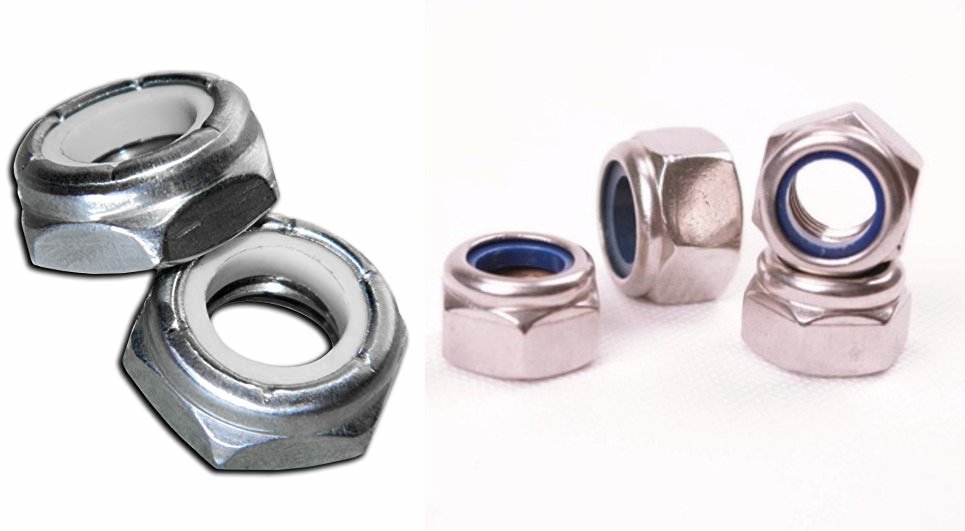

Lock Nut Fastener

This range of lock nuts is designed with higher precision using superior quality raw materials like brass, aluminum and galvanized steel. These are available in metric, imperial, NPT, BSPT, BSP, & PG standards and are used in fastening glands to the gland plate. We offer these nuts at most reasonable price. Our offered nut is manufactured in accordance with set industry standards using supreme grade metal with the aid of innovative techniques. This special kind of nut is suitable for preventing vibration or torque from bolt joint that is loosen. In addition to this, we provide this nut to our clients at most economical prices.

One or more stainless steel grip coils near the centre of the thread inserts inside the nut holds the screw/bolt securely against loosening. They maintain a strong constant pressure on the external threads. The thread inserts provides a permanent internal thread.


Specification

- Grade : a2 , a4 , 200 series
- Standards: DIN 439 , BS1083
- Manufacturing by Cold forming, Hot forming

Technical Specification
MFG. Standard IS/ANSI/ASME/DIN
Range Size M3 - M48 and also available in all customized sizes.
Material(All Grade) Stainless Steel
Grade: ASTM 182 , ASTM 193, ASTM 194, B8 (304), B8C (SS347), B8M (SS316), B8T (SS321), A2, A4, 304 / 304L / 304H, 310, 310S, 316 / 316L / 316H / 316 Ti, 317 / 317L, 321 / 321H, A193 B8T 347 / 347 H, 431, 410
Carbon Steel
Grade: ASTM 193, ASTM 194, B6, B7/ B7M, B16, 2, 2HM, 2H, Gr6, B7, B7M
Alloy Steel
Grade: ASTM 320 L7, L7A, L7B, L7C, L70, L71, L72, L73
Brass
Grade: C270000
Naval Brass
Grade: C46200, C46400
Copper
Grade: 110
Duplex & Super Duplex
Grade: S31803, S32205
Aluminium
Grade: C61300, C61400, C63000, C64200
Hastelloy
Grade: Hastelloy B2 Lock Nut Fastener, Hastelloy B3, Hastelloy C22, Hastelloy C276, Hastelloy X
Incoloy
Grade: Incoloy 800 Lock Nut, Inconel 800H, 800HT
Inconel
Grade: Inconel 600, Inconel 601 Lock Nut, Inconel 625, Inconel 718
Monel
Grade: Monel 400, Monel K500, Monel R-405
High Tensile Bolt
Grade: 9.8, 12.9, 10.9, 19.9.3
CUPRO-Nickel
Grade: 710, 715
Nickel Alloy
Grade: UNS 2200 (Nickel 200) / UNS 2201 (Nickel 201), UNS 4400 (Monel 400), UNS 8825 (Inconel 825), UNS 6600 (Inconel 600) / UNS 6601 (Inconel 601), UNS 6625 (Inconel 625),UNS 10276 (Hastelloy C 276), UNS 8020 (Alloy 20 / 20 CB 3)
Surface Finish Blackening, Cadmium zinc plated, Galvanized, Hot dip Galvanized, Nickel Plated, Buffing, etc.
Application All Industry
Die forging Closed die forging, open die forging, and hand forging.
Threads Metric, BSW, BSF, UNC, UNF, and as per costumers requirement.
