Forged Pipe Fittings - Socket Weld Coupling

Highly acclaimed Manufacturer & Exporter presents best offer ever on ASME B16.11 / BS3799 Socket Weld Full Coupling

We at Triton Alloys Inc believes in long term relationship with our clients worldwide, Required Quality in reasonable price of ASME B16.11 / BS3799 Socket Weld Full Coupling are always our main priority. We are known as specialist in ASME B16.11 / BS3799 Socket Weld Full Coupling,70% of our customers are associated with us for their regular requirements of ASME B16.11 / BS3799 Socket Weld Full Coupling, Chinese suppliers also procures ASME B16.11 Socket Weld Full Coupling from us bcz. We have the specialization & 35 years of experience to manufacture ASME B16.11 / BS3799 Socket Weld Full Coupling.

Triton Alloys Inc is Manufacturer, Stockists & Supplier of premium quality range of ASME B16.11 / BS3799 Socket Weld Full Coupling, Stainless Steel Flanges & Other Stainless Steel Pipe fittings that are manufactured under the expert guidance of our diligent workforce. we are highly experienced company in ASME B16.11 / BS3799 Socket Weld Full Coupling & other pipe fittings. our ASME B16.11 / BS3799 Socket Weld Full Coupling & Other Fitting products are manufactured using quality material and go through a rigorous quality check at all stages of production to ensure quality. Designed in compliance with international quality standards, these ASME B16.11 / BS3799 Socket Weld Full Coupling are corrosion resistance, sturdy and durable. we also supply ASME B16.11 / BS3799 Socket Weld Full Coupling & other pipe fittings Flanges in customized size. Our Product Supply Division offers a broad portfolio of Steel Flanges and ASME B16.11 / BS3799 Socket Weld Full Coupling. When you place an order with Triton Alloys Inc, you will receive the products that will stand up in service from people that will stand behind their product.

Specification :

Size: 1/2"NB TO 24"NB IN
Class: 150 LBS, 300 LBS
Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastelloy :
Grade: Hastelloy B2, Hastelloy B3, Hastelloy C22, Hastelloy C276, Hastelloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, stainless steel 310/310S, SS 317/317L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Value Added Service : CNC Machine, Customized Flanges

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS

Size Class Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 ANSI B 16.11

ASTM A 182

ASME SA182

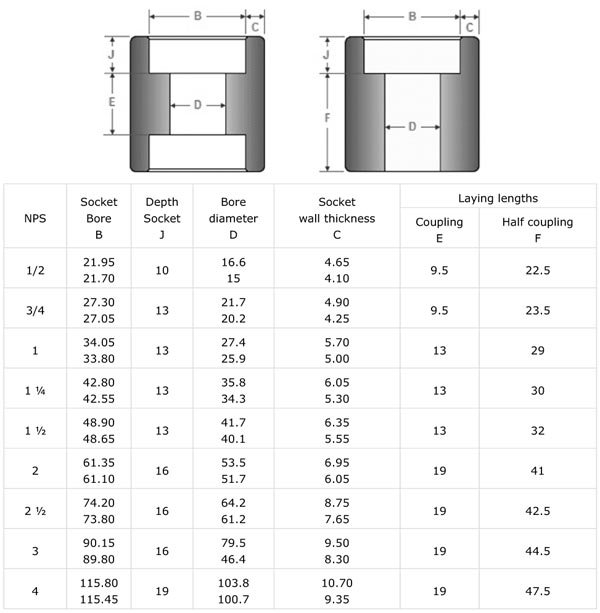

Dimensions

socketweld-half-coupling-dimension

Full Socket Weld Couplings

Size Class Dimension Specification
1/4" to 4" 2000, 3000, 6000, 9000 ANSI B 16.11 ASTM A 182

Stainless Steel Full Socket Weld Coupling

ASTM / ASME SA A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Full Socket Weld Coupling

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2

Alloy Steel Full Socket Weld Coupling

ASTM / ASME A182 F1/ F5/ F9/ F11/ F22/ F91

Nickel Alloy Full Socket Weld Coupling

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel Full Socket Weld Coupling

ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Duplex Steel Full Socket Weld Coupling

ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760

Dimensions

socketweld-half-coupling-dimension
