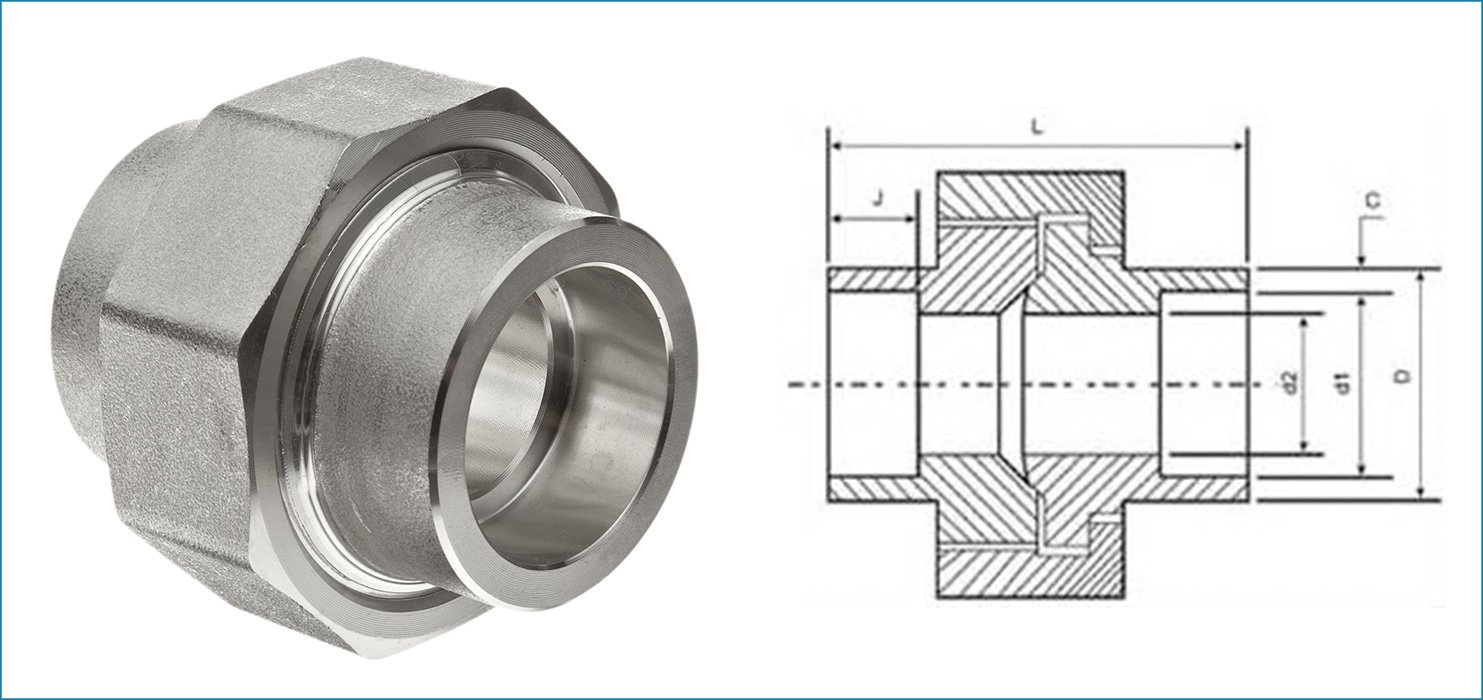

Socket Weld Union

Triton Alloys Inc is a dynamic group, which was established over a decade ago to cater to growing demands of ASME B16.11 Socket Weld Union standards in Elbows, Tee, Cross, Reducers, Nipple , Coupling etc in all materials like Stainless Steel , Carbon Steel & High Nickel Alloys. We Manufacture, Export and Supply Socket Weld Fittings which meets with national and international quality standards and producing base which owns equipments conforming to international technical level and is well equipped with a whole set of advanced plasma refining equipments.

We manufacture all 3 groups of Fittings such as Buttweld (BW) fittings, Socket Weld (SW) fittings & Threaded (THD) fittings as per ASME B16.11 standards & other International standards. We export our high quality ASME B16.11 Socket Weld Union to Kuwait, Egypt and Qatar.

Specification :

Size: 1/2"NB TO 24"NB IN
Class: 150 LBS, 300 LBS
Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Value Added Service : CNC Machine, Customized Flanges

TYPES OF SOCKET WELD FITTINGS BY CLASS, SIZE AND WALL THICKNESS

Description Class Designation
3000 6000 9000
Elbows 45 and 90 degrees,
Tees, Crosses, Couplings,
Half-Couplings,
End or Pipe Caps
½ - 4 ½ - 2 ½ - 2
½ - 4 ½ - 2 ½ - 2
½ - 4 ½ - 2 ½ - 2
Pipe Size
by Wall Thickness
SCH 80 & XS SCH 160 XXS

Dimensions

Nominal Diameter

Outside Diameter

Wall Thickness

Socket Bore

Water way Bore

Depth of Socket

Length Assem
Nominal
Dmin
Cmin
d1
d2
Jmin
L
DN
NPS

 Socket

Threaded
Socket
Threaded
Socket

Socket & Threaded
Socket
Socket & Threaded
6
1/8
21.8
14.7
3.2
2.5
10.65
6.43
10
41.4
8
1/4
21.8
19.0
3.3
3.1
14.10
9.45
10
41.4
10
3/8
25.9
22.9
3.5
3.2
17.55
13.51
10
46.0
15
1/2
31.2
27.7
4.1
3.8
21.70
17.07
10
49.0
20
3/4
37.1
33.5
4.3
4.0
27.05
21.39
13
56.9
25
1
45.5
41.4
5.0
4.6
33.80
27.74
13
62.0
32
11/4
54.9
50.5
5.3
4.9
42.55
35.36
13
71.1
40
11/2
61.5
57.2
5.6
5.1
48.65
41.20

13

76.5
50
2
75.2
70.1
6.1
5.6
61.10
52.12
16
86.1
65
21/2
91.7
85.3
7.7
7.1
73.80
64.31
16
102.4
80
3
109.2
102.4
8.4
7.7
89.80
77.27
16
109.0

Stainless Steel Full Socket Weld Coupling

ASTM / ASME SA A182 F304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Full Socket Weld Coupling

ASTM/ ASME A 105, ASTM/ ASME A 350 LF 2

Alloy Steel Full Socket Weld Coupling

ASTM / ASME A182 F1/ F5/ F9/ F11/ F22/ F91

Nickel Alloy Full Socket Weld Coupling

ASTM / ASME SB 336 UNS 2200 (NICKEL 200) , UNS 2201 (NICKEL 201 ) , UNS 4400 (MONEL 400 ) , UNS 8020 ( ALLOY 20 / 20 CB 3 ) , UNS 8825 INCONEL (825) , UNS 6600 (INCONEL 600 ) , UNS 6601 (INCONEL 601) , UNS 6625 (INCONEL 625) , UNS 10276 (HASTELLOY C 276)

Copper Alloy Steel Full Socket Weld Coupling

ASTM / ASME SB 111 UNS NO. C 10100 , C 10200 , C 10300 , C 10800 , C 12000, C 12200, C 70600 , C 71500
ASTM / ASME SB 466 UNS NO. C 70600 ( CU -NI- 90/10) , C 71500 ( CU -NI- 70/30)

Duplex Steel Full Socket Weld Coupling

ASTM A 182 – F 51, F53, F55 S 31803, S 32205, S 32550, S 32750, S 32760
