Triton Alloys

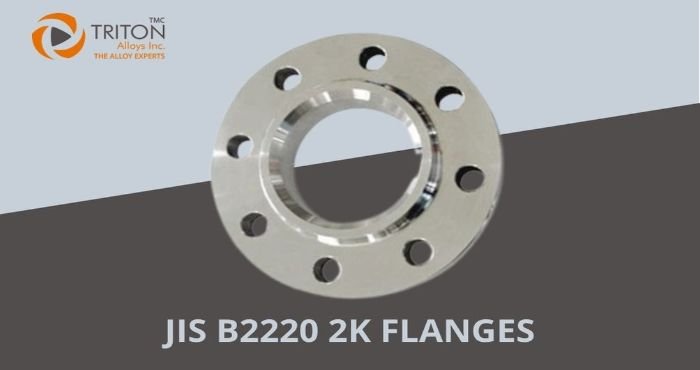

JIS B2220 2K Flanges

Triton Alloys Inc manufacturer & exporter of JIS B 2220 2K Flanges availbale in various forms and size, products like Blind Flanges,Weldneck Flanges.We also offer custom-made B 2220 2K flanges that have been widely appreciated by our clients.

JIS B 2220 2K Flanges Pipe Flanges and Flanges Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances,marking, testing, and methods of designating openings for pipe flanges and flanged fittings.

Specification :

Size: 1/2"NB TO 24"NB IN
Class: 150 LBS, 300 LBS
Materials: Monel :
Grade: Monel 400, Monel K500, Monel R-405
Nickel :
Grade: Nickel 200, Nickel 201
Inconel :
Grade: Inconel 600, Inconel 601, Inconel 625, Inconel 718
Incoloy :
Grade: Incoloy 800, Inconel 800H, 800HT
Hastalloy :
Grade: Hastalloy B2, Hastalloy B3, Hastalloy C22, Hastalloy C276, Hastalloy X
Titanium :
Grade: Gr1, Gr2, Gr3, Gr5, Gr7, Gr11
Stainless Steel :
Grade: ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 304H, 316H, 316/316L, 321, 330, 347, 309/S, 310/S, 317/L, 333, 410/S, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel :
Grade: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70
Duplex Steel:
Grade: ASTM / ASME A/SA 182 UNS F44, F45, F51, F53, F55, F60, F61
Alloy Steel:
Grade : ASTM SA 182 - E25, E26, E27, E28, E29B, E30B, E39B, E40B, E36B, E36C, E41B, AISI4130, AISI4140, AISI4340, 42CRMO4, 16MNCR5, 20MNCR5, 21CrMoV57, EN353, EN354, F11, F22, F91, F9, P11, P22, P91, P9, P5, P92, EN42J, EN8, EN19
Value Added Service : CNC Machine, Customized Flanges

Specification - JIS B2220 2K Flanges

Size:

1/2″ (15 NB) to 48″ (1200NB)

Standards:

ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Pressure Ratings :

Class 150, Class 300, Class 400, Class 600, Class 900, Class1500, Class 2500 | PN6, PN10, PN16, PN25, PN40, PN64 etc.

Carbon Steel Flanges :

ASTM A105/A105N, A350 LF1, LF2 CL1/CL2, LF3 CL1/CL2, A694 F42, F46, F48, F50, F52, F56, F60, F65, F70, A516.60, 65, 70 (Spectacle Flange, Spacer Ring/Spade Flange), Steel RST37.2, C22.8

Stainless Steel Flanges :

ASTM A182 F202, F304/304L/304H, F316/316L, F316H, F316TI, F310, F321, F904L

Alloy Steel Flanges : ASTM A182 F1, F5, F9, F11, F22, F91 Alloy Steel Flanges
Special Alloy Flanges :

Duplex Steel 2205, Super Duplex 2507 Flanges, Nickel Alloys

Flange Face Type:

Flate Face (FF) Flange, Raised Face (RF) Flange, Ring Type Joint (RTJ) Flange

Coating/Surface Treatment:

Anti-rust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized Value Added Services: CNC Machining, Customised Flanges
