ASME SA105N Blind Flange, ASTM A105 Flanges, Carbon Steel A105 Plate Flanges, ASTM A105 Threaded Flanges, ASTM A105N Lapped joint Flanges, ASTM A105 Slip On Flanges Manufacturer and Supplier in Mumbai, India.

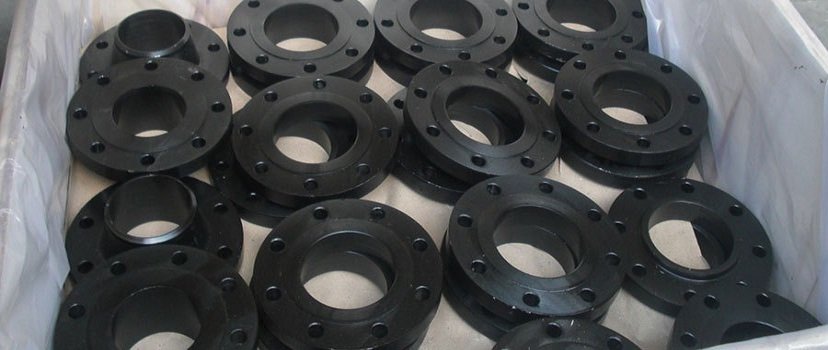

- ASTM A105 Flanges
A105 Class 300 Flange Size Inch to MM :
| Nominal Size | Outside Diameter (OD) | Bore Diameter (B) | No. of Bolt Holes | Bolt Hole Diam. | Bolt Circle (BC) | Thickness (T) | Hub Length (L) | Hub Diam. (H) | Lap Radius ( R ) |
Approx. Weight (lbs)
|
| 1 | 4.25 | 1.38 | 4 | 0.625 | 3.13 | 0.563 | 0.688 | 1.938 | 0.13 | 2 |
| 1 1/4 | 4.68 | 1.72 | 4 | 0.625 | 3.5 | 0.625 | 0.813 | 2.312 | 0.19 | 3 |
| 1 1/2 | 5 | 1.97 | 4 | 0.625 | 3.88 | 0.688 | 0.875 | 2.563 | 0.25 | 3 |
| 2 | 6 | 2.46 | 4 | 0.75 | 4.75 | 0.75 | 1 | 3.063 | 0.31 | 5 |
| 2 1/2 | 7 | 2.97 | 4 | 0.75 | 5.5 | 0.875 | 1.125 | 3.563 | 0.31 | 7 |
| 3 | 7.5 | 3.6 | 4 | 0.75 | 6 | 0.938 | 1.188 | 4.25 | 0.38 | 8 |
| 3 1/2 | 8.5 | 4.1 | 8 | 0.75 | 7 | 0.938 | 1.25 | 4.812 | 0.38 | 11 |
| 4 | 9 | 4.6 | 8 | 0.75 | 7.5 | 0.938 | 1.312 | 5.312 | 0.44 | 13 |
| 5 | 10 | 5.69 | 8 | 0.875 | 8.5 | 0.938 | 1.438 | 6.438 | 0.44 | 15 |
| 6 | 11 | 6.75 | 8 | 0.875 | 9.5 | 1 | 1.562 | 7.562 | 0.5 | 18 |
| 8 | 13.5 | 8.75 | 8 | 0.875 | 11.75 | 1.125 | 1.75 | 9.688 | 0.5 | 30 |
| 10 | 16 | 10.92 | 12 | 1 | 14.25 | 1.188 | 1.938 | 12 | 0.5 | 42 |
| 12 | 19 | 12.92 | 12 | 1 | 17 | 1.25 | 2.188 | 14.375 | 0.5 | 64 |
| 14 | 21 | 14.19 | 12 | 1.125 | 18.75 | 1.375 | 2.25 | 15.75 | 0.5 | 90 |
| 16 | 23.5 | 16.19 | 16 | 1.125 | 21.25 | 1.438 | 2.5 | 18 | 0.5 | 98 |
| 18 | 25 | 18.2 | 16 | 1.25 | 22.75 | 1.562 | 2.688 | 19.875 | 0.5 | 125 |
| 20 | 27.5 | 20.25 | 20 | 1.25 | 25 | 1.688 | 2.875 | 22 | 0.5 | 160 |
| 24 | 32 | 24.25 | 20 | 1.375 | 29.5 | 1.875 | 3.25 | 26.125 | 0.5 | 212 |
| 30** | 38.75 | 30.25 | 28 | 1.375 | 36 | 2.125 | 3.5 | 32.75 | 0.5 | 305 |
| 36** | 46 | 36.25 | 32 | 1.625 | 42.75 | 2.375 | 3.75 | 39.25 | 0.5 | 440 |
ASME SA105n Socket Weld Flanges, Carbon Steel ASTM A105 Plate flange in India, Check Carbon Steel ASTM A105n Slip On Flanges Weight Chart, A105 Carbon Steel Flanges Manufacturers, Ready Stock Of Carbon Steel A105 Plate Flanges In India, Buy Directly From A105 Carbon Steel Threaded Flanges Manufacturers In Mumbai.
Carbon Steel ASTM A105 Plate flange Weight
| Standard | Class | Diameter | Bolt Circle Diameter | Number of Bolts | Bolt Size |
Diameter of Bolt Hole
|
| AS4087 Flanges | PN14 Flanges | 95 | 67 | 4 | M12 | 14 |
|
AS 2129 Flange
|
Table C Flanges | 95 | 67 | 4 | 13 | 14 |
| Table D Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table E Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table F Flanges | 95 | 67 | 4 | 13 | 14 | |
| Table H Flanges | 114 | 83 | 4 | 16 | 17 | |
| Table J Flanges | 114 | 83 | 4 | 16 | 17 | |
|
ANSI B16.5 Flanges
|
ANSI 150 Flanges | 89 | 60 | 4 | 13 | 16 |
| ANSI 300 Flanges | 95 | 67 | 4 | 13 | 16 | |
| ANSI 600 Flange | 95 | 67 | 4 | 13 | 16 | |
| ANSI 900 Flange | 121 | 83 | 4 | 19 | 22 | |
| ANSI 1500 Flange | 121 | 83 | 4 | 19 | 22 | |
|
ISO 7005 (DIN) Flange
|
PN6 Flanges | 80 | 55 | 4 | M10 | 11 |
| PN10 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN16 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN20 Flange | 90 | 60.5 | 4 | M14 | 16 | |
| PN25 Flange | 95 | 65 | 4 | M12 | 14 | |
| PN40 Flange | 95 | 65 | 4 | M12 | 14 |
Types of Flanges Available
Blind Flanges
Slip on Flanges
Socket Weld Flanges
Threaded Flanges
Weld Neck Flange
Lap Joint Flange
Expander Flange
Nippo Flanges
Reducing
Ring Type Joint Flanges
High Hub Flange
Square Flange
Flanges Applications Industries
ASTM A105 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :
- Flanges uses in Paper & Pulp Companies
- Stainless Steel Flanges uses in Oil and Gas Industry
- Flanges Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbowuses in Pipeline
- Buttweld Flanges Pipe Forged uses in High Temperature Application
- Flanges uses in Water Pipe Line
- ASTM A105 Flanges Pipe Forged can be used in Nuclear power plants
- Flanges usefule for High Pressure Applications
- Flanges Long Radius Forged uses in Fabrication and welding Job
- Flanges uses in Food Processing and Dairy Industries
- Flanges Short Radius Forged uses in boiler & heatexchangers
Marking & Packing
Our ASTM A105 Flanges are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All ASTM A105 Flanges are marked with Grade, Lot No, Size and our trade mark. We can also make custom marking on our products on Special request from Purchaser.
Quality Assurance
Triton Alloys Inc all ASTM A105 Flanges, ASME SA105N Blind Flange and ASTM A105 Threaded Flanges are subject to strict inspection at each stage starting from material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, DIN, EN, and JIS codes and standards. We can also appoint official certified Inspection Agencies upon request of our clients so that they can witness the material reports, dimensions and quality conformity of products.
