Triton Alloys Inc is one of the prominent manufacturer, exporter and supplier of forged threaded pipe fittings manufactured in accordance to ASME B16.11. Forged threaded pipe fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L) and ASTM A105. We are constantly adding to our diverse product range in order to better serve our valued customers.
BFO combines high quality, reliable stainless steel with low shipping costs to keep your operation moving forward smoothly. These stainless steel NPT threaded pipe fittings are ideal for applications that involve chemicals or liquids that may be corrosive. Along with fighting corrosion, a stainless steel pipe fittings will also prevent contamination. We carry a large selection of both 304 and 316 stainless steel.
Specification :
| Type | Forged Fittings |
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Pressure Class | 150 LBS, 300 LBS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Stainless Steel | ASTM A 182 F -.304, 304L, 304Ti, 316, 309, 310, 317L, 321, 347, 904L. |
| Duplex Steel | 2205 (F60), 31803 (F51), 32750, 32760. |
| Carbon Steel | ASTM A-105, A-350 LF2. |
| Alloy Steel | ASTM A 182- F5, F9, F11, F12, F21, F22 & F91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel, Inconel, Alloy 20 etc. |
| Test Certificate | MTC, Govt. App. Lab. |
| Specialize | IBR Fitting, Swage Nipple |

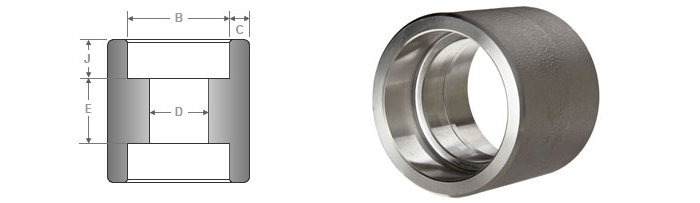

ASME B16.11 Forged Socket Weld Full Coupling Dimensions
NPS 1/2 to 4 – 3000 LBS Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
|---|---|---|---|---|---|---|
| B | J | D | C | Coupling E |
||
| 1/2 | 21.95 21.70 |
10 | 16.6 15 |
4.65 4.10 |
9.5 | |
| 3/4 | 27.30 27.05 |
13 | 21.7 20.2 |
4.90 4.25 |
9.5 | |
| 1 | 34.05 33.80 |
13 | 27.4 25.9 |
5.70 5.00 |
13 | |
| 1¼ | 42.80 42.55 |
13 | 35.8 34.3 |
6.05 5.30 |
13 | |
| 1½ | 48.90 48.65 |
13 | 41.7 40.1 |
6.35 5.55 |
13 | |
| 2 | 61.35 61.10 |
16 | 53.5 51.7 |
6.95 6.05 |
19 | |
| 2½ | 74.20 73.80 |
16 | 64.2 61.2 |
8.75 7.65 |
19 | |
| 3 | 90.15 89.80 |
16 | 79.5 46.4 |
9.50 8.30 |
19 | |
| 4 | 115.80 115.45 |
19 | 103.8 100.7 |
10.70 9.35 |
19 | |
NPS 1/2 to 2 – 6000 LBS Dimensions
| NPS | Socket Bore |
Depth Socket |
Bore diameter |
Socket wall thickness |
Laying lengths | |
|---|---|---|---|---|---|---|
| B | J | D | C | Coupling E |
||
| 1/2 | 21.95 21.70 |
10 | 12.5 11 |
5.95 5.20 |
9.5 | |
| 3/4 | 27.30 27.05 |
13 | 16.3 14.8 |
6.95 6.05 |
9.5 | |
| 1 | 34.05 33.80 |
13 | 21.5 19.9 |
7.90 6.95 |
13 | |
| 1¼ | 42.80 42.55 |
13 | 30.2 28.7 |
7.90 6.95 |
13 | |
| 1½ | 48.90 48.65 |
13 | 34.7 33.2 |
8.90 7.80 |
13 | |
| 2 | 61.35 61.10 |
16 | 43.6 42.1 |
10.90 9.50 |
19 | |
Available Forged Steel Socket Weld Full Coupling Types
| Forged Socket weld Full Coupling | Stainless Steel Socket weld Full Coupling |
| Duplex Steel Forged Full Coupling | Carbon Steel Socket weld Full Coupling |
| Alloy Steel Socket weld Full Coupling | Super Duplex Steel Forged Full Coupling |
| Copper Alloy Steel Socket weld Full Coupling | Nickel Alloy Forged Socket weld Full Coupling |
| Monel Alloy Socket weld Full Coupling Stocks | SS Class 6000 Lbs Socket weld Full Coupling |
| Copper Nickel Forged Socket weld Full Coupling | Hastelloy Forged Socket weld Full Coupling |
| Inconel Socket weld Full Coupling Manufacturer | Titanium Forged Socket weld Full Coupling |
| Incoloy Socket weld Full Coupling | SS ANSI /ASME B16.11 Socket weld Full Coupling |
| BS3799 Forged Socket weld Full Coupling Suppliers | Class 3000 Lbs SS Forged Socket weld Full Coupling |
| SS ASTM A182 Forged Socket weld Full Coupling | Class 9000 Lbs Socket weld Full Coupling |
Types of Threaded Forged Fittings
Threaded Elbow
Threaded Tee
Threaded Cross
Threaded Plug
Threaded Coupling
Threaded Union
Threaded Cap
Threaded Nipple
Threaded Head Bushing
Threaded Boss
Threaded Outlet
Threaded Adapter
Threaded Forged Applications Industries
ASME B16.9 Degree Forged are known to deliver exceptional performance and are generally developed for meeting the demands. We offer a broad range of Buttweld Degree Forged through a worldwide network of stock-keeping branches. Buttweld Forged is use in various industries like :
- Threaded Forged uses in Paper & Pulp Companies
- Stainless Steel Threaded Forged uses in Oil and Gas Industry
- Threaded Forged Pipe Forged uses in Chemical Refinery
- Alloy Steel Threaded Elbowuses in Pipeline
- Buttweld Threaded Forged Pipe Forged uses in High Temperature Application
- Threaded Forged uses in Water Pipe Line
- ANSI B16.9 Threaded Forged Pipe Forged can be used in Nuclear power plants
- Threaded Forged usefule for High Pressure Applications
- Threaded Forged Long Radius Forged uses in Fabrication and welding Job
- Threaded Forged uses in Food Processing and Dairy Industries
- Threaded Forged Short Radius Forged uses in boiler & heatexchangers
