Triton Alloys Inc O-Ring Unions are engineered to provide Class 3000 Service and are the most popular union in the industry for general purpose applications. The flat face design provides turbulence-free fit across seats. This design is ideal where piping requirements dictate the necessity of having a flat face seal to make and break the pipe line. All HART Unions are made in the USA!
Triton Alloys is one of the prominent manufacturer, exporter and supplier of forged threaded pipe fittings manufactured in accordance to ASME B16.11. Forged threaded pipe fittings are available ex-stock in all major stainless steel grades (ASTM A182 F316L, F304L) and ASTM A105. We are constantly adding to our diverse product range in order to better serve our valued customers.
Specification :
| Type | Forged Fittings |
| Dimensions | ASME 16.11, MSS SP-79, MSS SP-95, 83, 95, 97, BS 3799 |
| Size | 1/2″NB TO 4″NB IN |
| Pressure Class | 150 LBS, 300 LBS |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
| Production Grades: | Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel |
| Stainless Steel | ASTM A 182 F -.304, 304L, 304Ti, 316, 309, 310, 317L, 321, 347, 904L. |
| Duplex Steel | 2205 (F60), 31803 (F51), 32750, 32760. |
| Carbon Steel | ASTM A-105, A-350 LF2. |
| Alloy Steel | ASTM A 182- F5, F9, F11, F12, F21, F22 & F91. |
| Nickel Alloy | Cupro Nickel, Hastelloy, Nickel, Monel, Inconel, Alloy 20 etc. |
| Test Certificate | MTC, Govt. App. Lab. |
| Specialize | IBR Fitting, Swage Nipple |

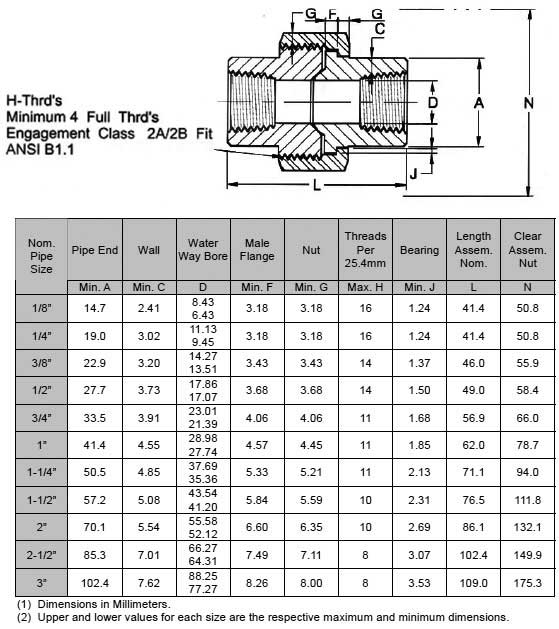

ASME B16.11 Forged Threaded Union Dimensions
| DIMENSIONS OF THREADED UNION (BS3799) (in mm) | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Nom. Pipe Size | Pipe End Min | Socket Bore Dia. | Socket Wall Min. | Water Way Bore | Laying Length | Male Flange Min. | Nut Min. | Threads Per 25.4 Max | Bearing Min. | Depth of Socket Min. | Length Assem. Nominal | Clear Assem. Nut |
| A | B | C | D | E | F | G | H | J | K | L | N | |
| 1/8 | 21.8 | 10.92 10.67 |
3.17 | 6.83 6.43 |
22.4 19.0 |
3.17 | 3.17 | 16 | 1.24 | 9.6 | 41.1 | 49.0 |
| ¼ | 21.8 | 14.22 13.97 |
3.30 | 9.85 9.45 |
22.4 19.0 |
3.17 | 3.17 | 19 | 1.24 | 9.6 | 41.4 | 49.0 |
| 3/8 | 25.9 | 17.78 17.53 |
3.48 | 13.92 13.51 |
26.9 20.6 |
3.43 | 3.43 | 14 | 1.37 | 9.6 | 46.0 | 55.0 |
| ½ | 31.2 | 21.84 21.59 |
4.06 | 17.47 17.07 |
26.9 20.6 |
3.68 | 3.68 | 14 | 1.50 | 9.6 | 49.0 | 57.0 |
| ¾ | 37.1 | 27.18 26.92 |
4.27 | 21.79 21.39 |
31.8 25.4 |
4.06 | 4.06 | 11 | 1.68 | 12.7 | 56.9 | 67.0 |
| 1 | 45.5 | 34.04 33.78 |
4.95 | 28.14 27.74 |
34.3 26.2 |
4.57 | 4.44 | 11 | 1.85 | 12.7 | 62.0 | 79.0 |
| 11/4 | 54.9 | 42.67 42.42 |
5.28 | 35.76 35.36 |
40.6 32.5 |
5.33 | 5.21 | 11 | 2.13 | 12.7 | 71.1 | 94.0 |
| 11/2 | 61.5 | 48.77 48.51 |
5.54 | 41.61 41.20 |
42.2 34.0 |
5.84 | 5.59 | 10 | 2.31 | 12.7 | 75.5 | 111.0 |
| 2 | 75.2 | 61.47 61.21 |
6.05 | 52.53 52.12 |
45.3 37.3 |
6.60 | 6.35 | 10 | 2.69 | 15.8 | 86.1 | 132.0 |
| 21/2 | 91.7 | 74.17 73.66 |
7.65 | 64.72 64.31 |
61.7 52.1 |
7.49 | 7.11 | 8 | 3.07 | 15.8 | 102.4 | 148.0 |
| 3 | 109.2 | 90.17 89.66 |
8.31 | 77.67 77.27 |
63.8 53.6 |
8.25 | 8.00 | 8 | 3.53 | 15.8 | 109.0 | 175.0 |
In Stock ASME B16.11 Threaded Union Types
| Forged Steel Unions | MS Forged Union |
| Threaded Union Coupling | 3000# Npt Threaded Union |
| 6000# Threaded Union Fitting Suppliers | BS 3799 Threaded Union Female Male Manufacturer |
| Forged Threaded Adapter Union Fitting | Stainless Steel Threaded Union |
| Threaded Copper Union | Threaded Pipe Union Fittings |
| Galvanized Threaded Union | Threaded Orifice Union |
| 9000# Threaded Pipe Union | Threaded Reducing Union |
| Male Threaded Socket Union | Socket Weld X Threaded Union |
| Male X Female Threaded Union | Screwed Union Pipe Fittings |
| Carbon Steel Threaded Union | High Pressure Threaded Union |
| ASTM A182 SS Threaded Union | Duplex Steel Threaded Union |
| Super Duplex Steel Threaded Union | Copper Nickel Threaded Union |
| High Nickel Alloy Forged Steel Union | Hastelloy Screwed Union Pipe Fittings |
| Titanium Forged Threaded Unions | Inconel Forged Threaded Unions |
